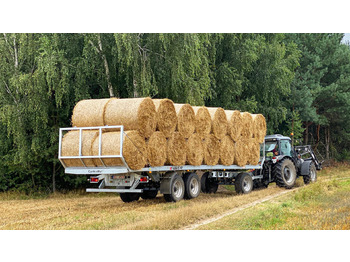

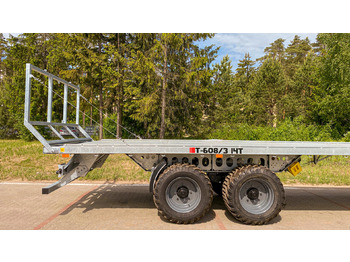

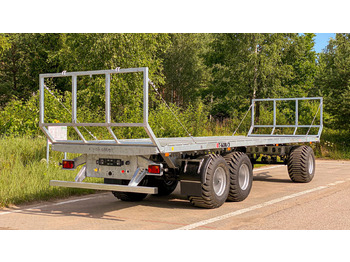

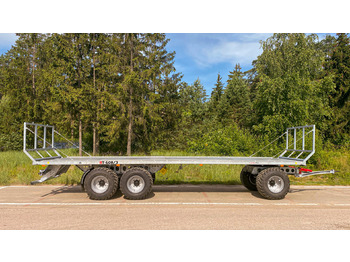

مقطورة منصة الزراعية جديد Cynkomet Ballentransportwagen / Bale platform / Remorque pour balles / Rimorchio per balle / Przyczepa do przewozu bel

Cynkomet Trailer T-608/3 L European homologation

Technical payload ~14,360 kg*

Permissible total weight 19 000 kg

Unladen weight 4,640 kg*

Number of axles 3

Length - rear frame retracted / extended max. 11,950/ 12,950** mm

Width 2 540 mm

Height 2,530 mm

Type of body: platform

Width: palletized

Sliding rear frame

- Galvanized floor made of 4 mm thick metal sheets

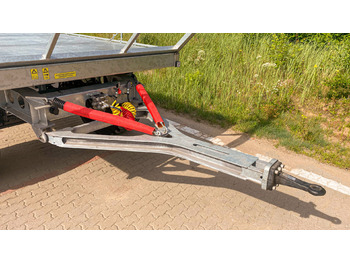

- Drawbar type "Y" with replaceable end, approved in accordance with UN ECE Regulation 55 (Reg. 55 UN ECE) and 167/2013*2015/208 ND

- Screw-on hitch link fi 40

- 2 adjustable drawbar support springs

- Hot-dip galvanized frame (protection of the structure on the outside and inside of the profiles), frame sleepers made of 160x160x5 and 120x60x5 closed profiles

- Parking hand brake with crank

- Rants on the side stringers of the frame to limit the movement of the load

- Holes in the side stringers and brackets for attaching load securing straps

- Hot-dip galvanized ladders at the front and rear of the platform, 1335 mm high, made of closed profiles

- 4 support ropes for the ladders

- Pallet width

- Extendable rear frame extending the cargo area by about 1 m (it is not permitted to drive on public roads with the rear frame extended)

- Approved hot-dip galvanized rear bumper

- Lighting system connection cable with 7PIN 12-volt plug

- Lighting 12 V, approved, incandescent tail lamps, LED marker lights

- Approved two-wire air brake system with automatic brake force regulator, with output for a second trailer

- Rear electrical and brake output for second trailer

- New 500/50-17 wheels

- Axles from a reputable ADR company, full 90mm square beam, 350×90 brakes

- Suspension on parabolic springs

- Two wheel chocks placed in galvanized pockets

- Wheel fenders on the last axle

Optional equipment:

- 500/50 spare wheel 17,00

- Surcharge for 435/50 19.5 wheels

- Spare wheel 435/50 19.5

- Drawbar eyelet 50 mm

- Manual hitch for second trailer

- Elevated ladders (height from the floor - 1800 mm)

- Central lashing cables of the ladders

- Mudguard ¼ on the front axle kpl 2 pcs.

- Side underride guards

- Spare wheel winch with hot-dip galvanized wheel hanger

- Two-wire hydraulic brake system with automatic brake force control

- Hydraulically extendable rear frame extending the cargo area by 1 m

- Hydraulic quick coupler with line pressure eliminator

Water tank + soap dispenser

- Tool box

- Hydraulic walls - lowered on one side

- Hydraulic walls - lowered on both sides
