آلة خلط وتوزيع الأعلاف Kuhn SPW 22 Intense / LOW MTH / 1 Owner / Works Great

Transmission type : Automatic

Colour : Red

Number of cylinders : 6

Capacity in litres : 22000 l.

Boot capacity (seats up) : 22000 l.

Central lubrication

= Additional options and accessories =

- Particulate filter

= Remarks =

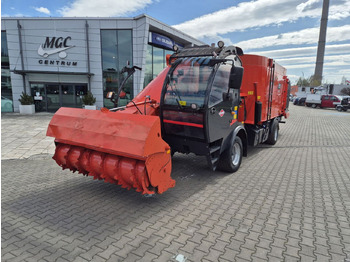

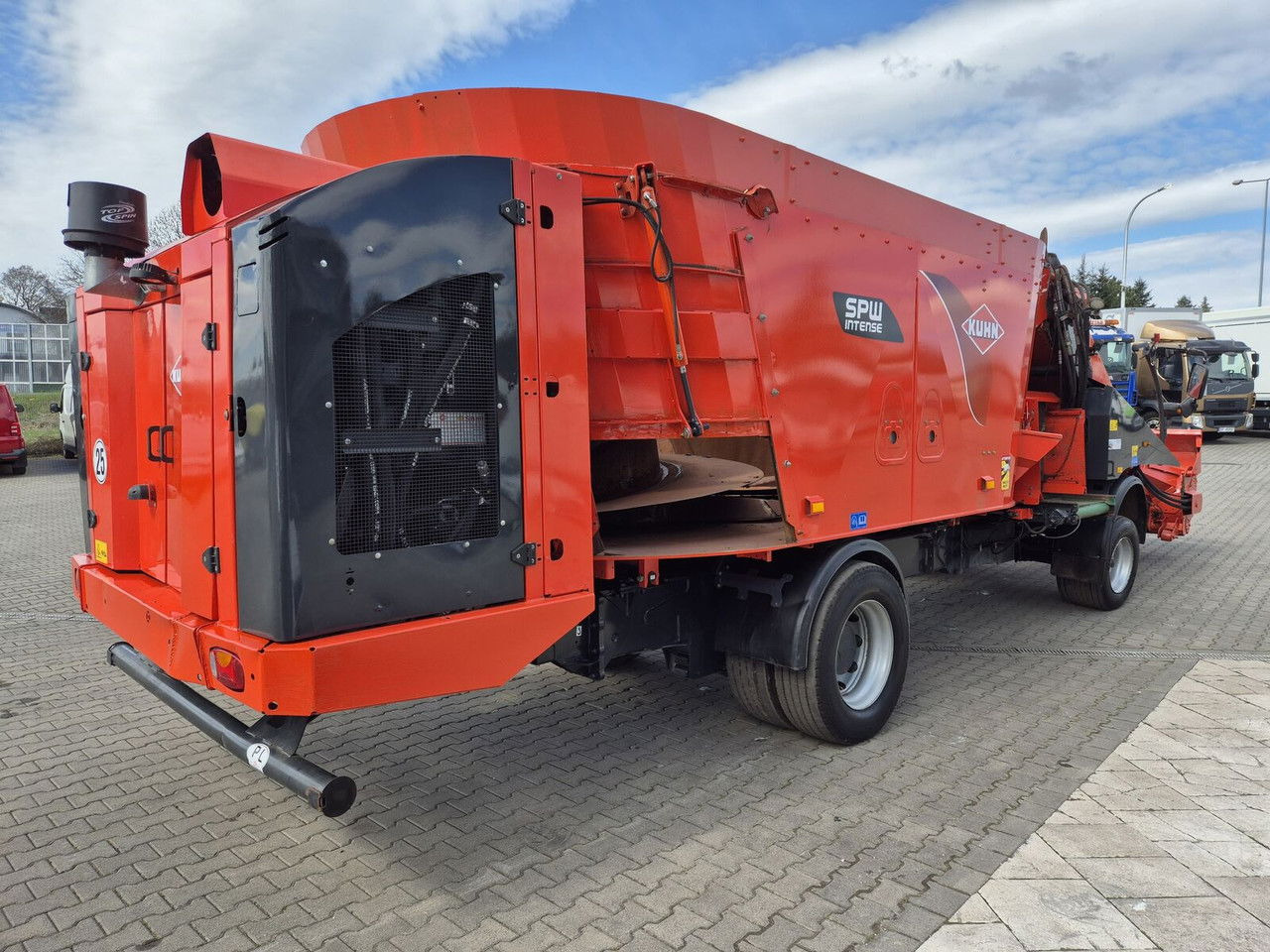

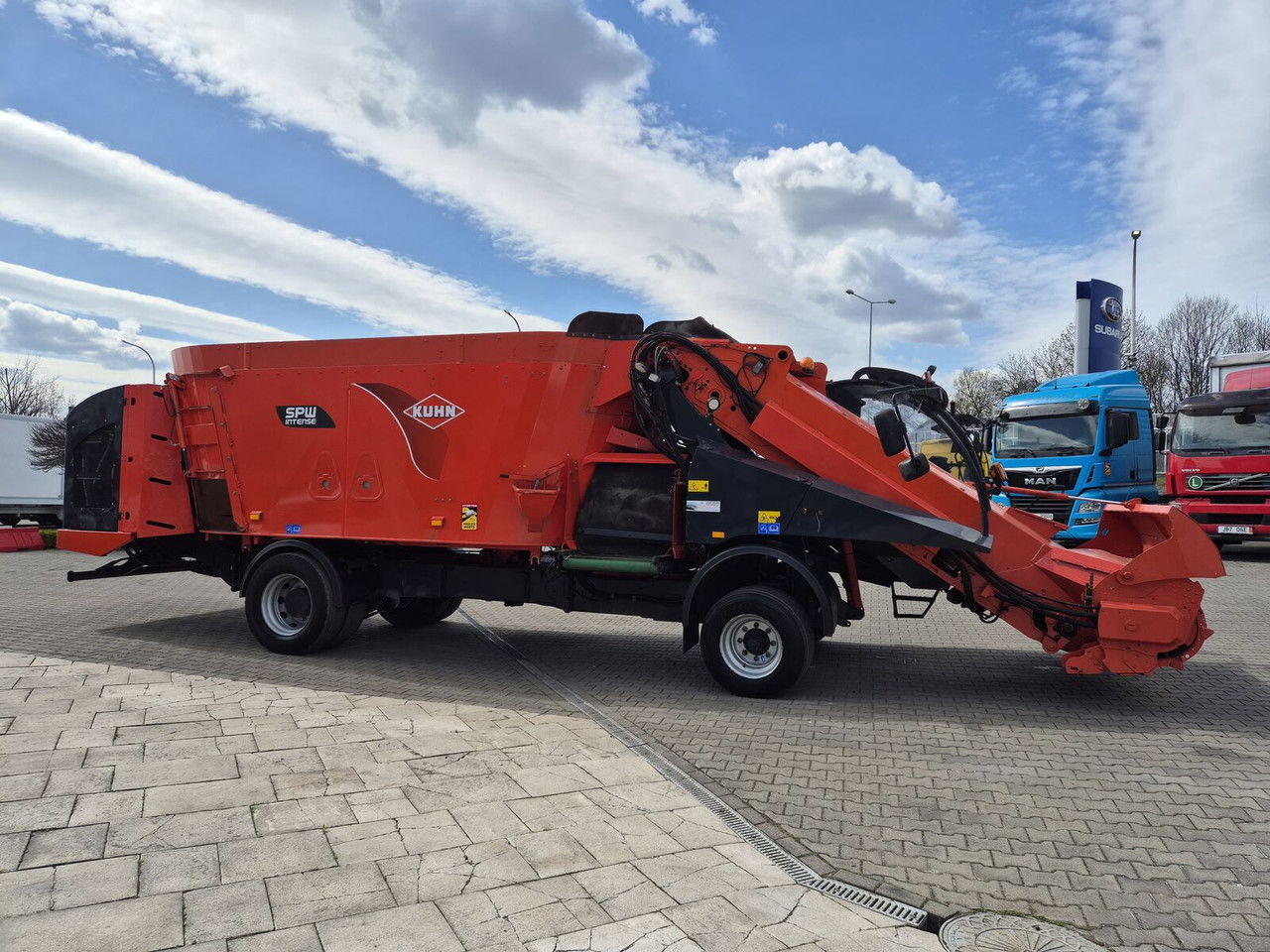

The Kuhn SPW 22 Intense is a self-propelled animal feed wagon with two internal augers, boasting an impressive capacity of 22 cubic meters!

This machine is from the first owner and has less than 8,000 original operating hours.

Regularly serviced and used.

The rear axle is permanently fixed and NOT steerable.

For those interested, we can deliver the equipment to a specified address - contact the seller for more information.

The machine is ready for immediate operation, ideal for medium- and large-scale farms looking for an efficient, precise, and economical solution for loading, chopping, and mixing TMR.

NOTE!

The feed wagon has many new parts, including:

Conveyor belt

New drum milling head

New planetary gearbox

Engine oils and filters at current mileage.

TECHNICAL DATA:

Model: KUHN SPW INTENSE 22

Year of manufacture: 2017

Mileage: 8,000 operating hours

Hopper capacity: 22 m³

Mixing system: 2 vertical augers (twin-auger)

Machine type: Self-propelled mixer wagon with loading cutter

DIMENSIONS AND WEIGHT

Total length: approx. 10.8–11.0 m

Total width: approx. 2.50 m

Height: approx. 3.05–3.10 m (depending on tires)

Unladen weight: approx. 16,200 kg

Turning radius: approx. 8.8 m – very good maneuverability in tight yards

ENGINE / DRIVE

Engine: 6-cylinder FPT / Fiat Powertrain (a Volvo engine was available in some configurations) – I will confirm on the nameplate)

Power: approx. 165 kW / 224 HP

Emissions: SCR / AdBlue system

Transport speed: up to 25 km/h

MIXING SYSTEM

2 vertical augers with speed regulation up to approx. 55 rpm

KUHN auger tips (double wings) – better flow, faster mixing, lower energy consumption

High homogeneity and short mixing times

Solid chamber design – adapted to intensive work

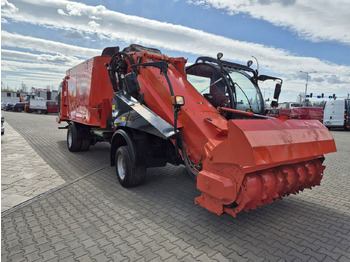

LOADING / CUTTER

Loading cutter up to approx. 6 meters high – picks up silage even from high piles and silos

Smooth control of speed and cutting force

Fast and clean loading without spilling material

The design allows for the collection of all types of silage: corn, haylage, alfalfa, and spent grain etc.

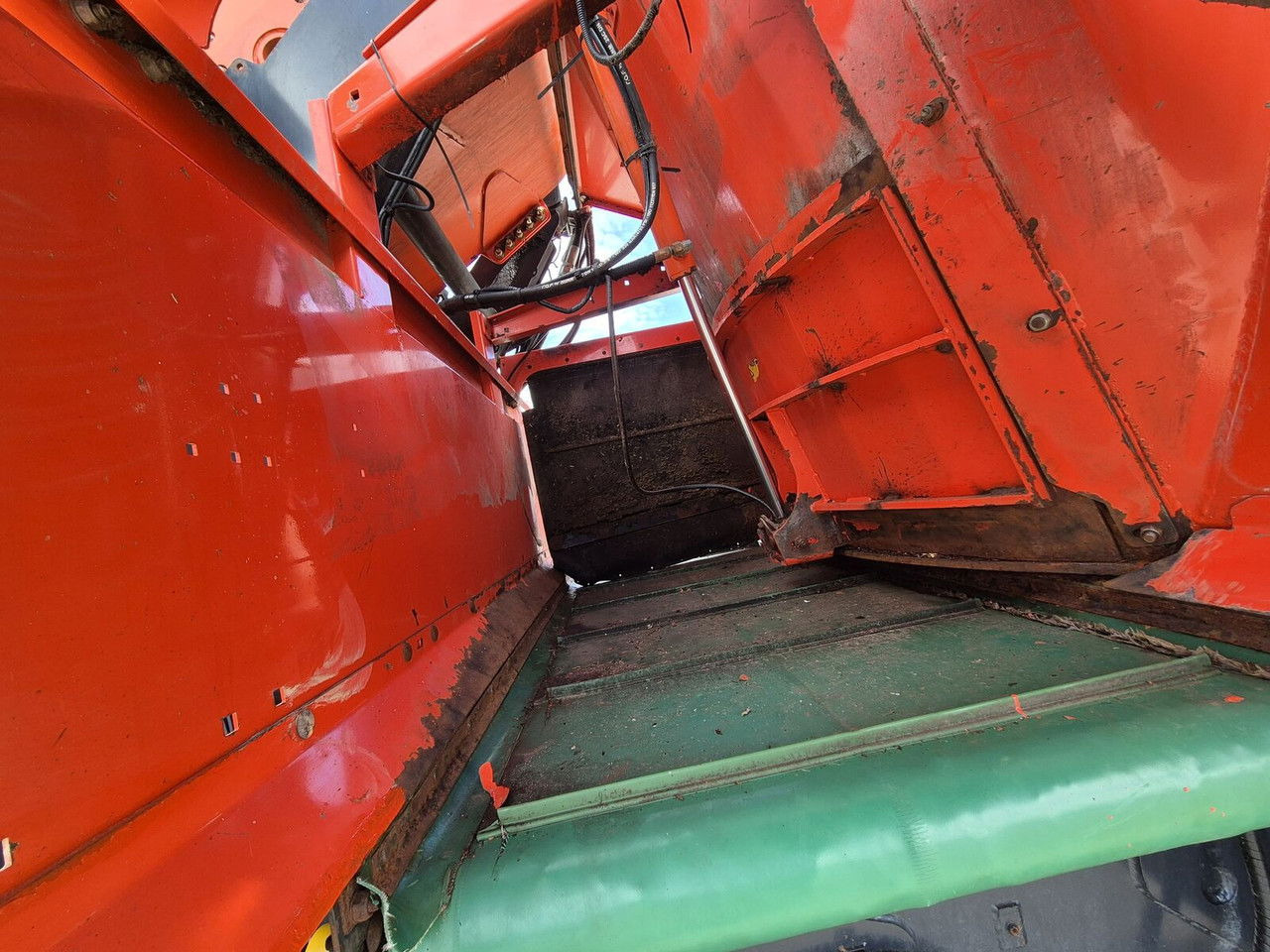

UNLOADING PERFORMANCE AND FUNCTIONS

Unloading belt with adjustable feed speed

Precise feed distribution to the table or the aisle

Chamber designed for complete emptying without mix retention

CAB AND OPERATION

Ergonomic VISIOSPACE operator's cab - excellent visibility to the cutter and work area

Grammer operator's seat (air suspension)

Joystick control

Rear-view camera

Radio

Air conditioning

Option to set automatic mixing and unloading programs

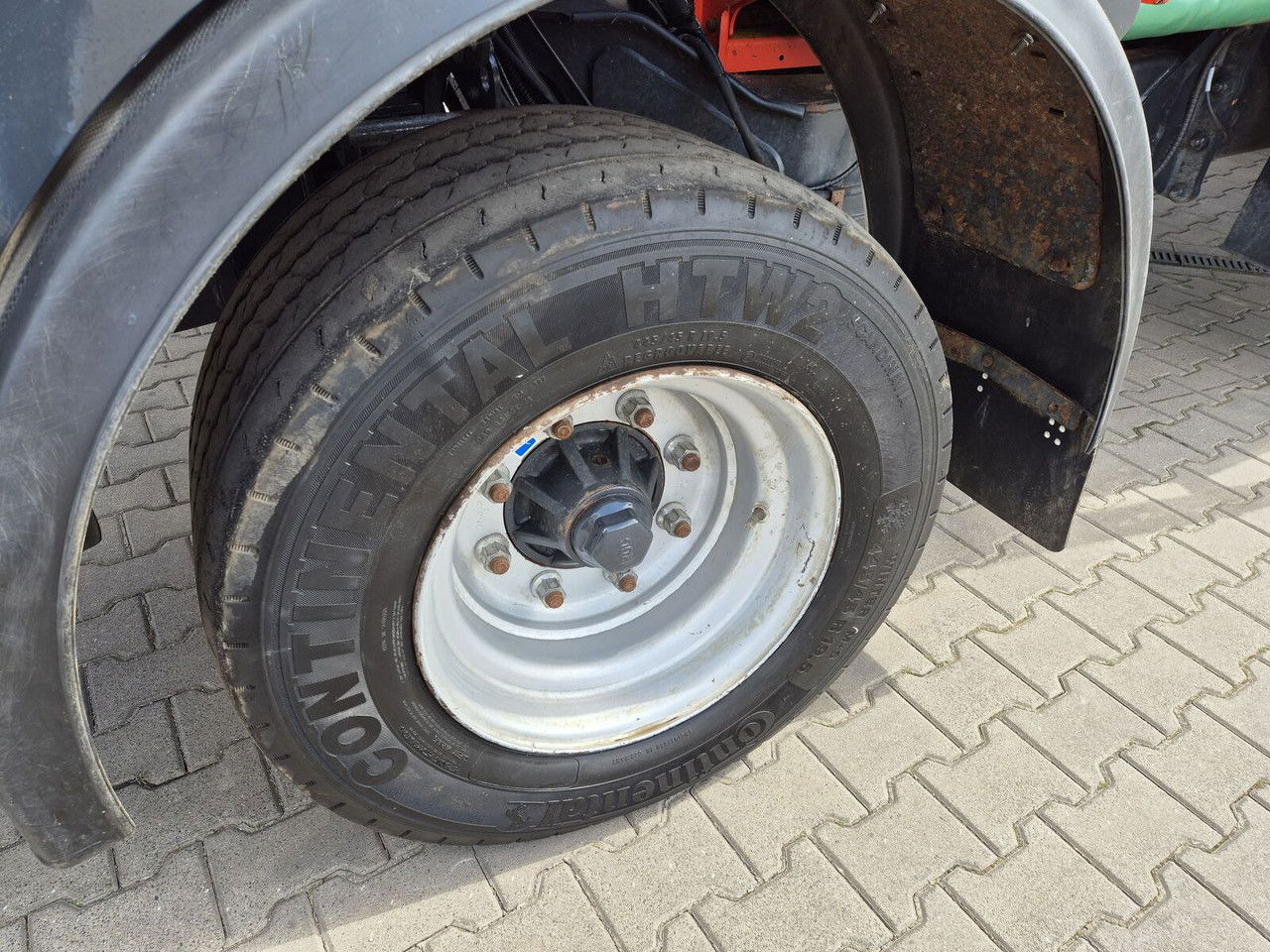

TIRES / CHASSIS

Sample tires (compatible with a machine of this model year):

Front: 445/45R19.5

Rear: 315/70R22.5

The chassis is adapted to intensive farm work, also in difficult terrain.

MACHINE CONDITION

Machine with 8,000 hours of operation, fully Functional, well-maintained, and regularly serviced.

It has been used on a single farm.

With such a long service life, it's worth paying attention to:

Auger bearings – regularly checked

No hydra
