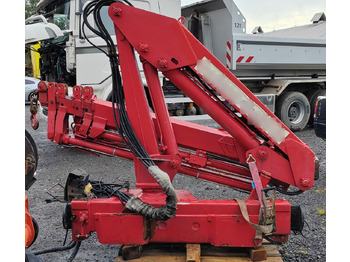

ونش كرين HMF 403 K4 light crane, outreach 11 m, Ladekran, Kran PALFINGER...

Lightweight, smaller HMF hydraulic crane (Denmark, with representation and service in all countries), category 4 tonm, built in 1998, ideal for mounting on vehicles with a gross weight of 7.5 t or more, agricultural machinery, trailers, etc.

Crane in very good technical condition, fully functional, with no play, etc., video sequence demonstrating the machine's functionality. First operator: a stonemasonry business in Germany.

4-way hydraulic extension of the crane boom with a maximum reach of 9.5 m (vertical approx. 11 m)

+ 1 x mechanically manually extendable boom extension with a maximum reach of 11.1 m (vertical approx. 13 m).

Lever control of the crane and outriggers from both sides, simple hydraulic locking in the event of crane overload, safety valves for all functions.

Outriggers with manual lateral and hydraulic vertical extension with extended support width up to 4.925 m (lateral telescopic extension for maximum stability).

Load capacity/reach (horizontal): 1790 kg/2.0 m, 1095 kg/3.55 m, 705 kg/5.05 m, 525 kg/6.5 m, 415 kg/8.0 m, 350 kg/9.5 m (+ manual extension 270 kg/11.1 m).

Rotation angle 400°, max. operating pressure 26.5 MPa.

Crane dimensions when folded: approx. 2000 x 550 x H. 1750 mm.

Crane weight 890 kg (without mechanical boom extension), crane hook included. Location: Czech Republic.
