موزع الأسفلت جديد TICAB Asphalt Sprayer , Manufacturer, Bitumen Spreader, 200L/500L/1000L

REASONS TO BUY FROM US:

- We offer fair price from the manufacturer.

- You save money on mediators when cooperating directly with our company.

- 1-year warranty and post-guarantee service.

- Individual approach and exclusive offers.

Unlock more benefits when contacting us!

200 L

Mini Hand-Held Asphalt Disributor for 200L from manufacturer, The bitumen emulsion sprayer is designed for priming asphalt pavement for small patching repairs, asphalting adjacent areas, as well as for filling seams and cracks with bitumen emulsion.

The hand-held bitumen emulsion sprayer was designed specifically for economical and fast spraying of cold bitumen emulsions for sealing asphalt pavement of small areas. This device allows you to cover 400 square meters with bitumen emulsion in 1 hour of work, while consuming 200 liters of emulsion.

Bitumen Emulsion Sprayer BS-200 from TM TICAB is an optimal equipment for small patching repairs, as well as for road works in a limited space (yards, alleys) and for sealing areas and cracks. With compact overall dimension – only 140 * 90 * 100 cm, the manual asphalt sprayer BS-200 can process up to 400 m² /3750 ft2 per hour

SPECIFICATIONS:

Power block (Petrol Engine HONDA GX-160, air-cooled - 3.6 кWt).

Productivity – 400 m² per 1 hour.

Consumption of bitumen emulsion – 200 l/h.

Consumption of bitumen emulsion: 0.8 l/m² (maximum)

Hand Spraying Rod – 4 m.

Cleaning System – 3-level with diesel fuel.

Function of tank self-pumping.

Weight (without tank): 120 kg

Strong metal frame on wheels for easy movement.

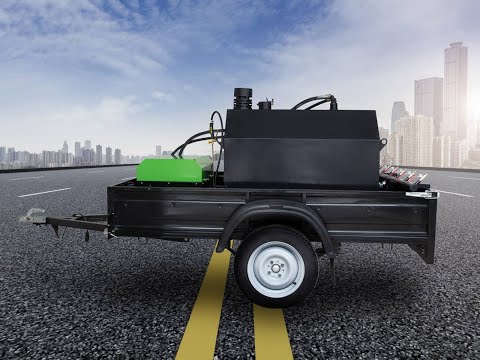

500/1000 L

Bitumen Emulsion Sprayer BS- 500, 1000 is designed

for priming the surfaces to asphalt paving. Bitumen

emulsion is supplied from a 500 or 1000 l tank, which

is installed directly on the fixing platform. Heating

system allows the bitumen emulsion to be sprayed

in a cold time. It is easy to use. It has its own cleaning

system. Made on a steel frame, or mounted on a trailer.

Specifications:

Productivity — 28l/min;

Spraying width — 1,7 m;

Cleaning system — 3-level, diesel fuel;

Self-pumping function of the tank;

Installation on a frame or on a trailer

at the customer's request;

Heating system of the emulsion tank;

Tank 500, 1000 l;

Possibility of connecting

an extra compressor for spraying

bar cleaning;

Thermal sensor — mechanical;

Hand spraying rod.

2000 L

The bitumen emulsion sprayer for 2000L (BS-2000 tar sprayer) is designed for priming before laying asphalt, asphalting adjacent areas, as well as for filling joints and cracks with bitumen emulsion. The bitumen emulsion is supplied from a 2000-litre tank. A heating system with two burners allows the bitumen emulsion sprayer to be used in cold weather. It is easy to use. Has its own flushing system. It is manufactured on the frame or mounted on a trailer

It is equipped with tank content temperature sensor switch, heating system, pump washing systems, bypass, hoses, integrated purge system under three-stage compressor quick coupling system.

SPECIFICATIONS::

- Spray bar for 11 nozzles with a width of 2.4 m

- Spray width with tyre - 2.4-2.8 m

- System cleaning - 3-level, diesel fuel

- Tanker self-pumping function

- Mounting on a frame or on a trailer on request

- Emulsion tank heating system

- Own 2000 l tank

- Possibility of connecting a third-party compressor for cleaning the sprinkler bar

- Mechanical thermal sensor

- Lance for manual sprinkling

- Power block (Petrol Engine HONDA GX-160)

- Engine power – 4.1 kw

COMPLETING:

- Tank truck 2000 l

- Power block

- Hose - 4m with rod and nozzle for manual spraying

- Hoses for supplying bitumen emulsion

- Spray bar for emulsion with 9 nozzles

- Gas burner with regulator

Gas cylinders are not included in the package!

Price for standard equipment - without trailer

Available in stock
