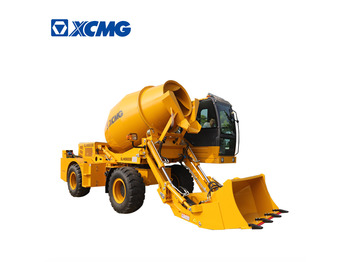

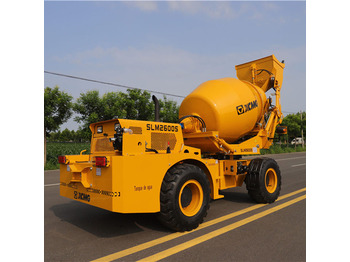

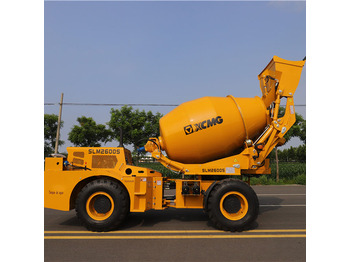

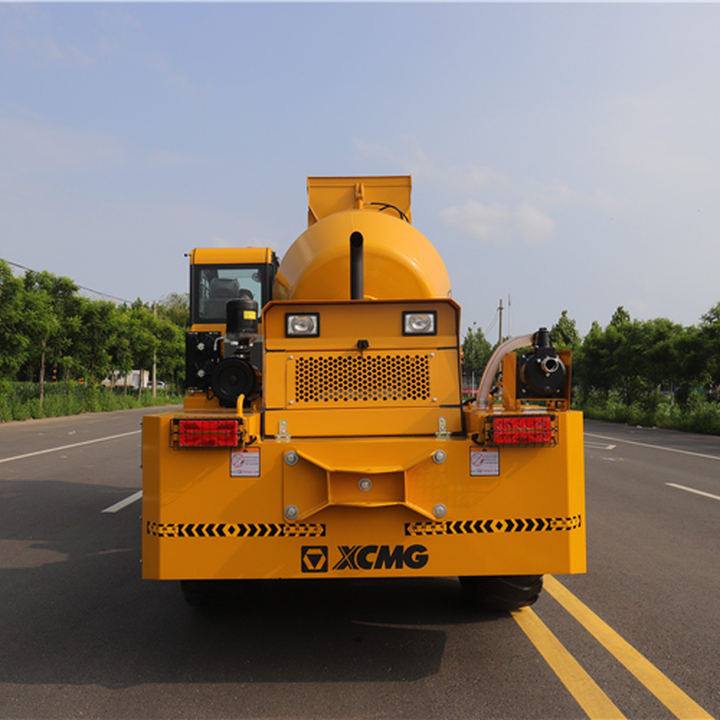

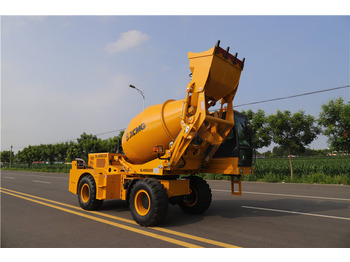

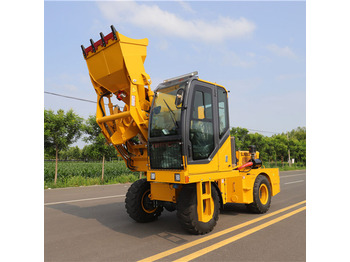

شاحنة خلاطة خرسانة جديد XCMG Official 2.6m3 Mini Diesel Self Loading Concrete Mixer

Warranty: 1 Year

Warranty of core components: 1 Year

Supply Ability: 10000 Unit/Units per Year

Outline Dimension: 7150*2650*3000 mm

Machinery Test Report: Provided

Speed of Mixing Drum: 0-20km/h

Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Video outgoing-inspection: Provided

Applicable Industries: Construction works

Place of Origin: Jiangsu, China

Marketing Type: Hot Product 2019

Turning radius: 2800mm

UNIQUE SELLING POINT: Environmental, Long lifetime,Energy-saving,Large power engine

Showroom Location: Canada, Philippines, Brazil, Peru, Indonesia, Mexico, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Bangladesh, South Africa, Ukraine, Nigeria, Uzbekistan, Malaysia, Australia, Morocco

Reclaiming capacity: 2.6m3

Productivity: 10M³/H

Brand Name: XCMG

Mixing Power: 77.3KW

PRICES: 1 - 4 units: $50,000.00,>= 5 units: $30,000.00

Multi-function integrationSelf loading concrete mixer is a kind of equipment combining the functions of existing concrete transport truck and mixing station. It can complete loading, measuring, mixing and unloading, and can realize transportation and on-site construction.Hydrostatic transmissionThe vehicle is four-wheel drive, so that the mixer can also produce concrete in bad working conditions, to ensure the work efficiency.Weighing systemThe aggregate is weighed in the loading process to ensure that the required concrete can be produced and the production efficiency can be improved with the weighing accuracy within 3%.* Output per lot: 2.6 cubic metresDrum rotation: discharge port height 1.65 M, horizontal rotation 270 degrees, tank can be raised and lowered* ENGINE: Yuchai, diesel, water cooled, 4 cylinder, 2200 rpm, rated power 77.3KW* Drive mode: The engine is directly connected to the 280 torque converter, through the drive shaft to the transmission with dual high and low speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive* SPEED: dual altitude, low speed 0-25 kph, high speed 0-40 kph* Driver's seat: Widen luxurious cab, anti-rollover, anti-falling object type* Hydraulic System: Open type oil, two gear pumps to participate in the work* JOYSTICK: Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank* Clay Groove: equipped with two 150 cm detachable chute to increase discharge length* Water Supply System: self-priming driven pump, 24V self-timing Centrifugal pump, 24V car wash machine* BRAKES: Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper* Steering: Hydraulic articulated steering* Fuel tank / Water tank: 1 * 600 l water tank, 120 l diesel fuel tank, 120 l hydraulic fuel tank* Others: Q345 manganese steel frame, luxury cab, driving impact, cement bucket
