كسارة متحركه جديد Constmach Installation Mobile De Concassage À Mâchoires D'une Capacité De 250 À 300 T/h

You can call us 24/7 for mobile jaw crushing plant for sale.

CONSTMACH JC-3 mobile jaw crusher is a product that attracts attention with its high efficiency and user-friendly design. This mobile stone crushing plant with a production capacity of 250-300 tph exhibits excellent performance even in large projects. With a maximum feed size of 1,100 x 850 mm, the JC-3 also provides reliability when working with high capacity.

it offers a comfortable operation with a feeding height of 4.5 meters and makes it possible to process various materials precisely thanks to the primary jaw, secondary cone and 3-layer sieve configuration. The total motor power is 450 kW and provides a powerful and uninterrupted operation with the requirement of an 800 kVA electric generator.

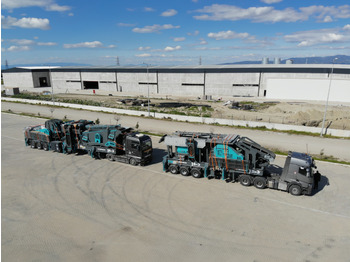

The CONSTMACH JC-3 weighs 100 tons and offers portability and stability Decoupled with its two-chassis design. The first chassis measures 13(L) x 3.4(W) x 4.5(H) meters, and the second chassis measures 20(L) x 4.4(W) x 4.5(H) meters. The double chassis structure on wheels equipped with hydraulic opening legs allows a quick and easy installation in the field.

This mobile crusher can be moved quickly in the field and reduces the installation time to a minimum. With its both strong and flexible structure, it provides superior performance in crushing and sieving various materials. CONSTMACH JC-3, which is an ideal solution for those who are looking for a mobile crusher, will be your biggest helper in your projects with its high efficiency and durability. JC-3, which is an excellent choice for your mobile crusher and mobile stone crushing needs, will meet your expectations with its reliability and superior performance.

JC-3 - Mobile Hard Stone Crusher Technical Specifications

Production capacity 250-300 tph​

Maximum Feeding Size 1.100 x 850 mm

Feeding Height 4.5m

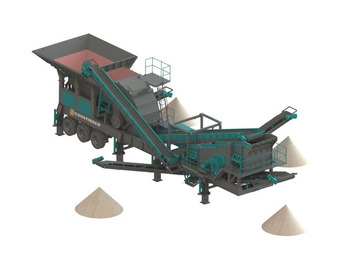

Main Configuration Primary Jaw + Secondary Cone + 3-Layer Sieve

Total Motor Power 450 kW

Electricity Generator Requirement 800 kVA

The weight of the plant is 100 Tons (the total weight of the two chassis)

The dimensions of the facility are 1. chassis: 13(L) x 3.4(W) x 4.5(H) meters 2. chassis: 20(L) x 4.4(W) x 4.5(H) meters

Chassis Type Double chassis on wheels equipped with hydraulic drop-down legs.
