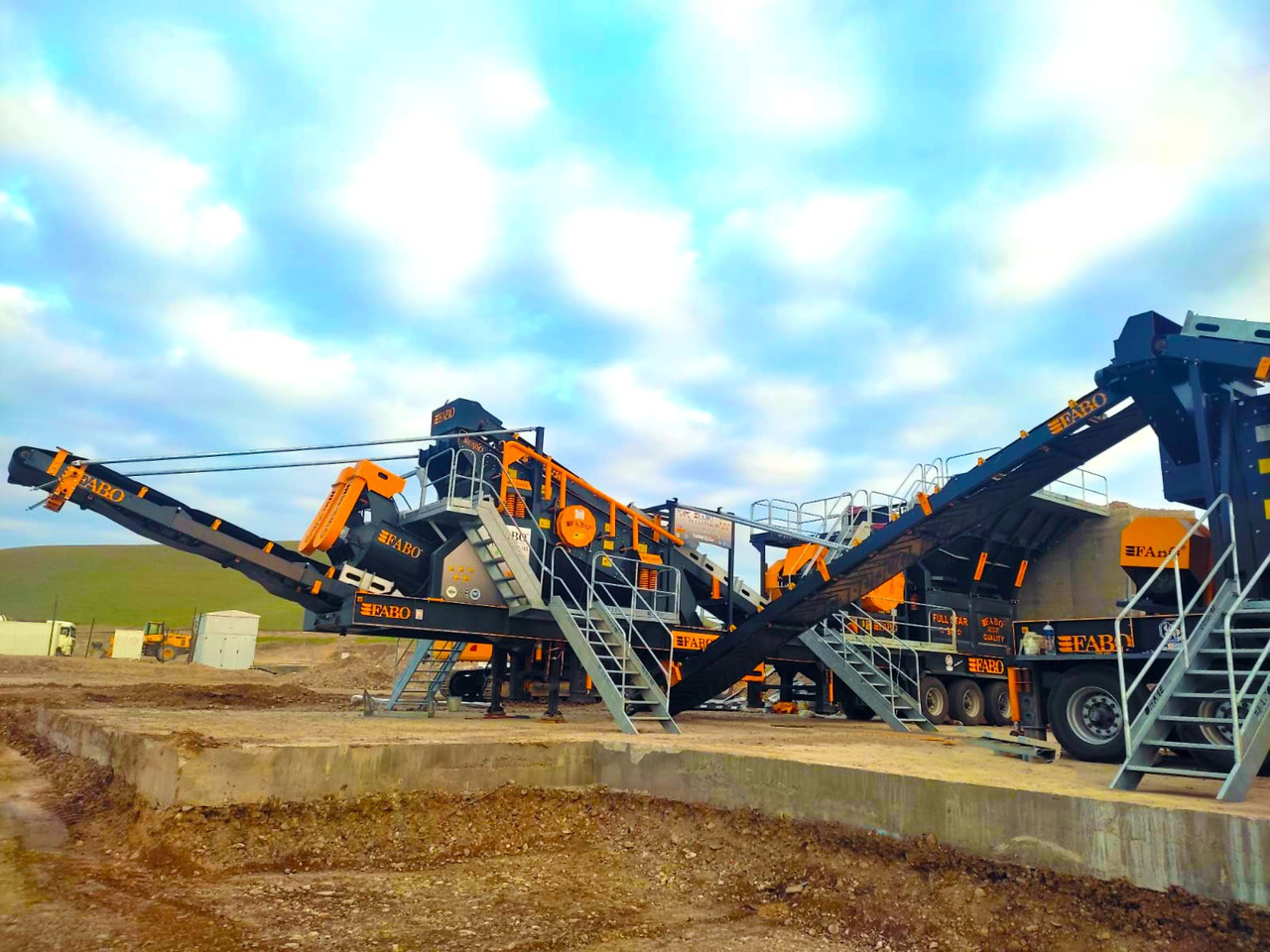

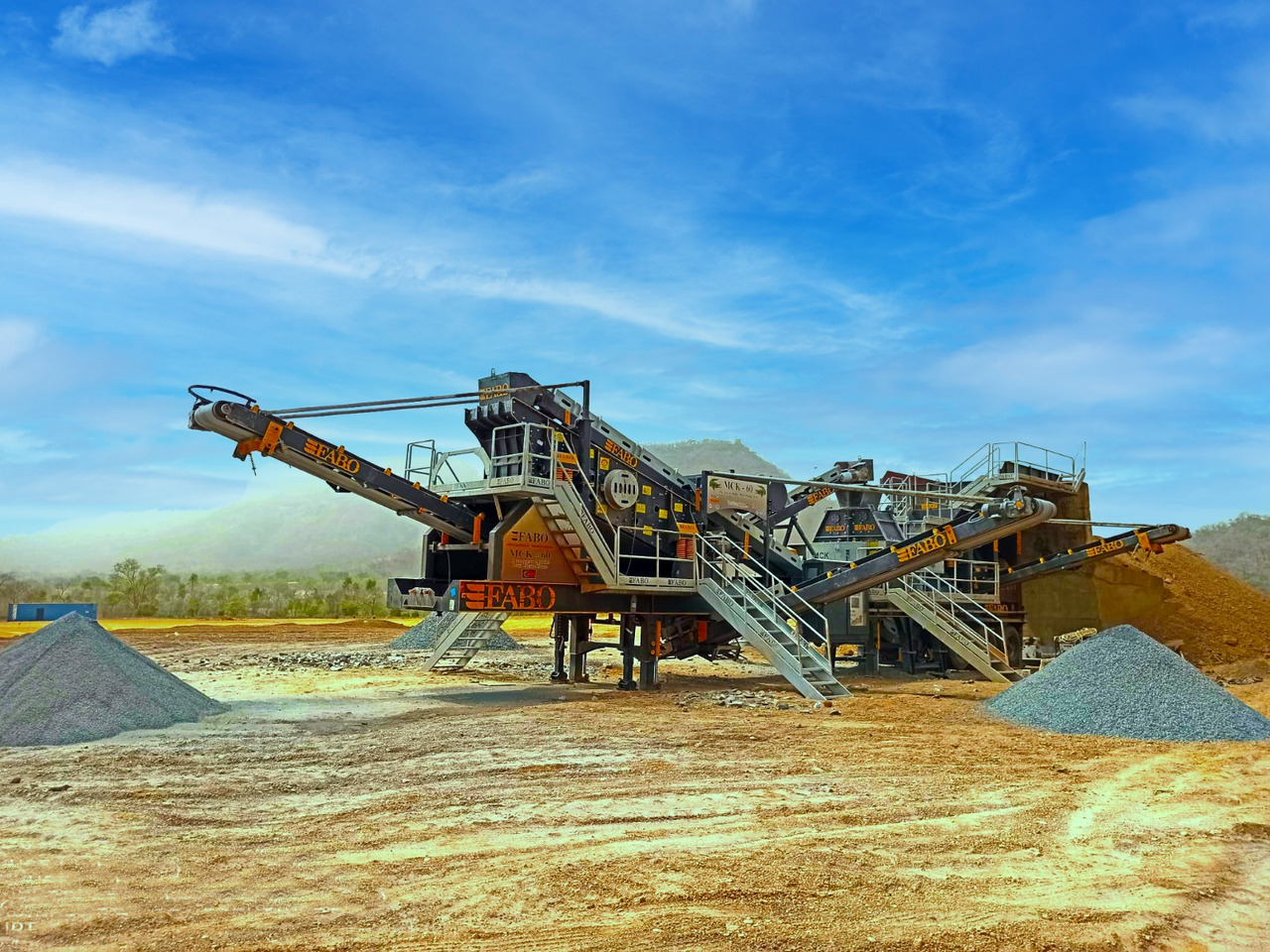

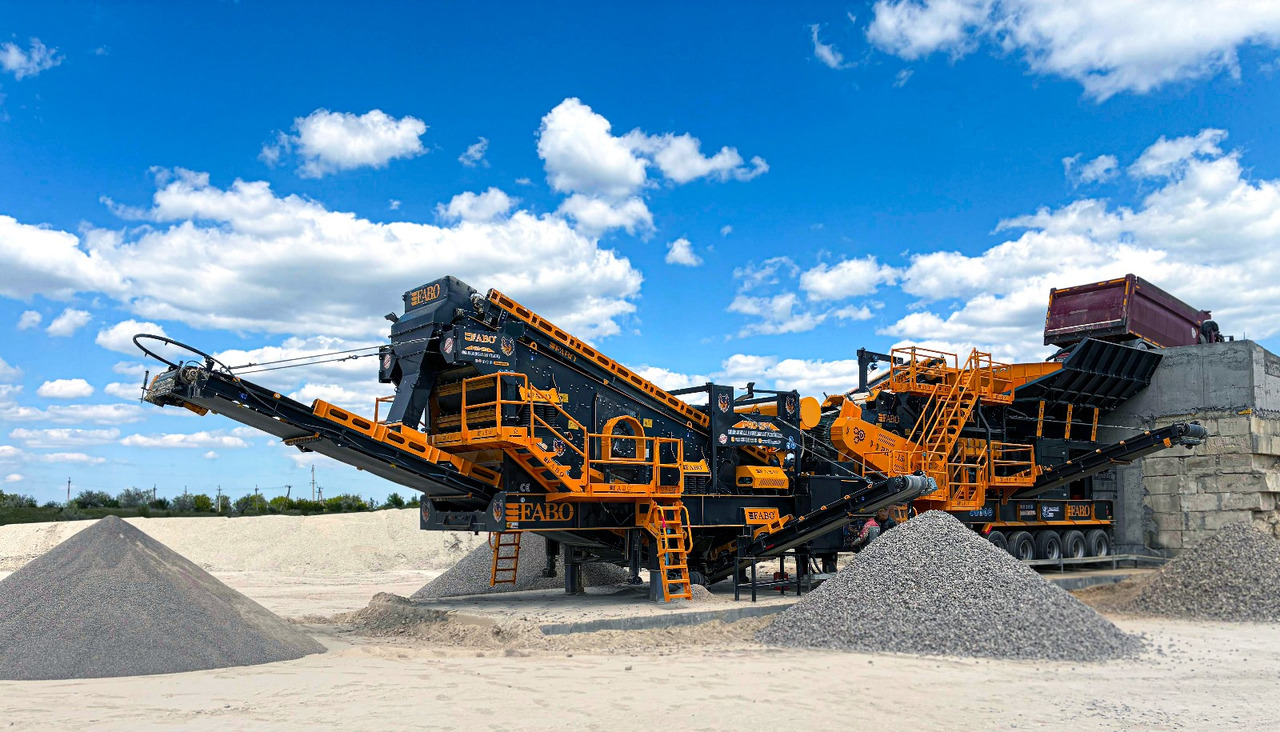

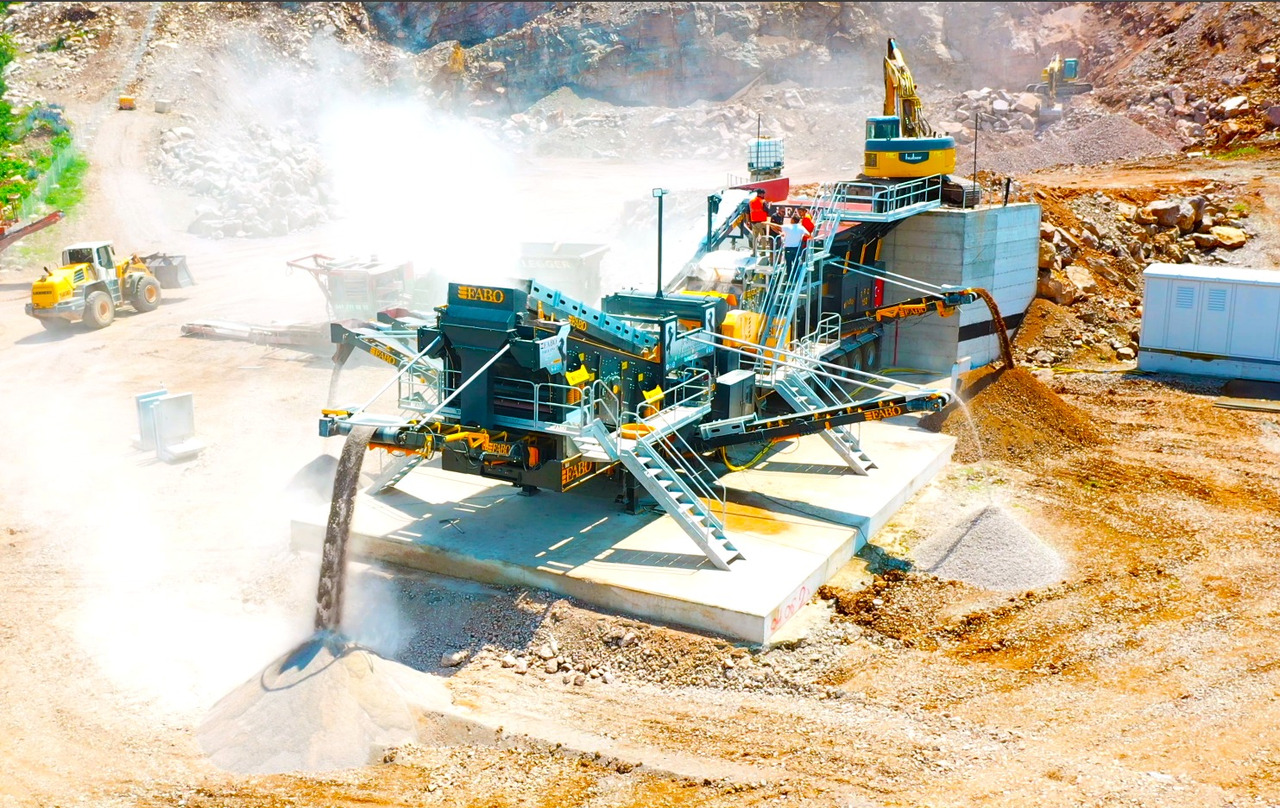

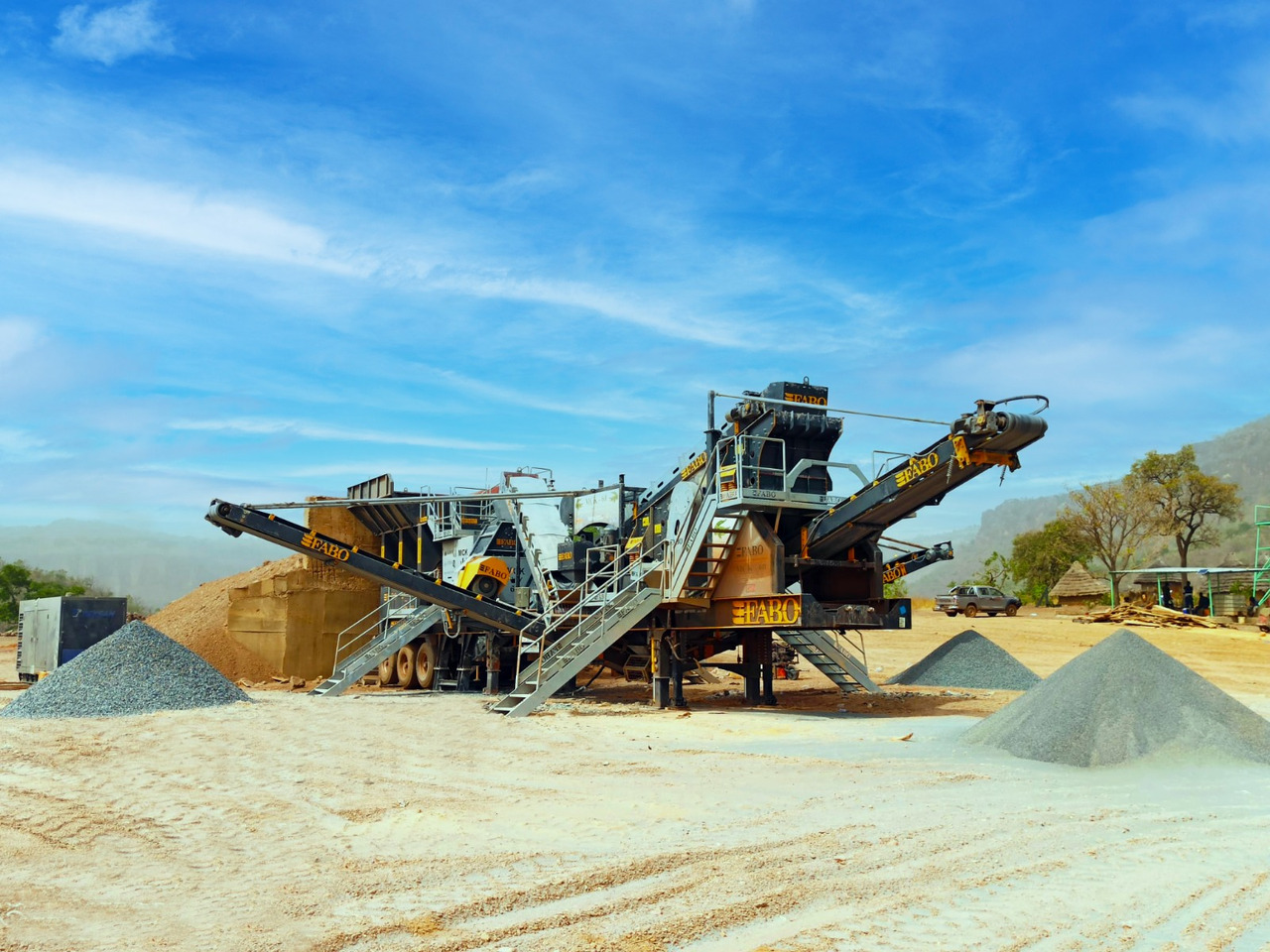

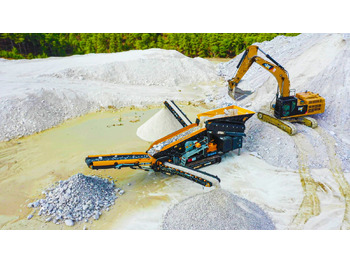

كسارة متحركه جديد FABO Mobile crusher

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

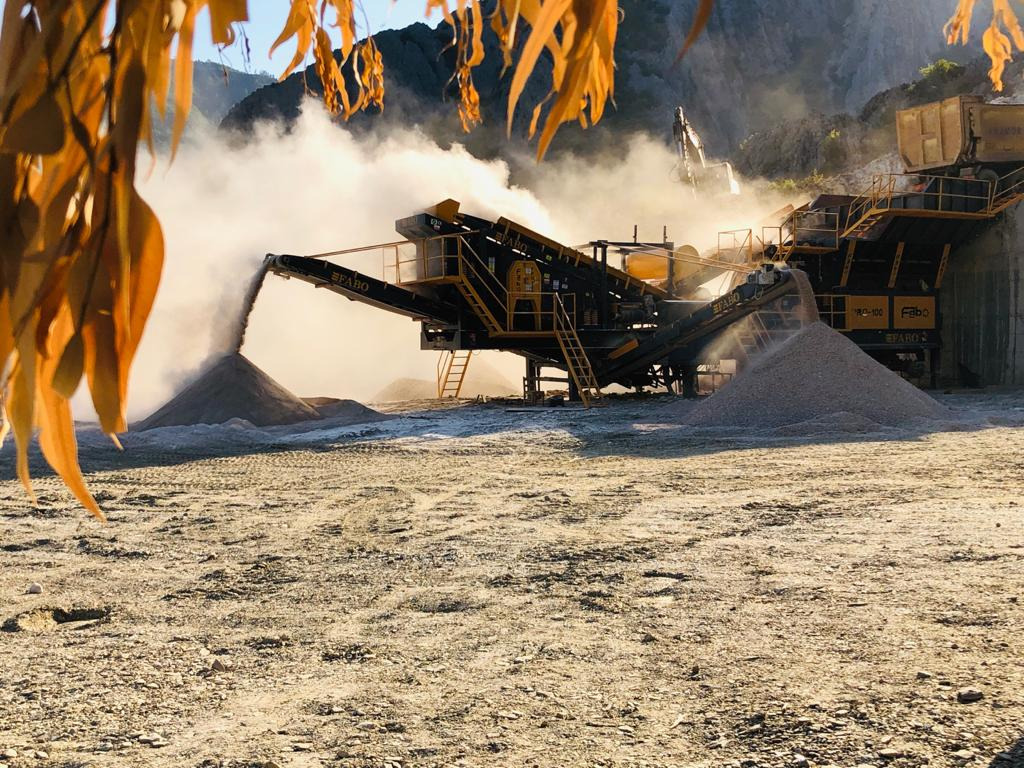

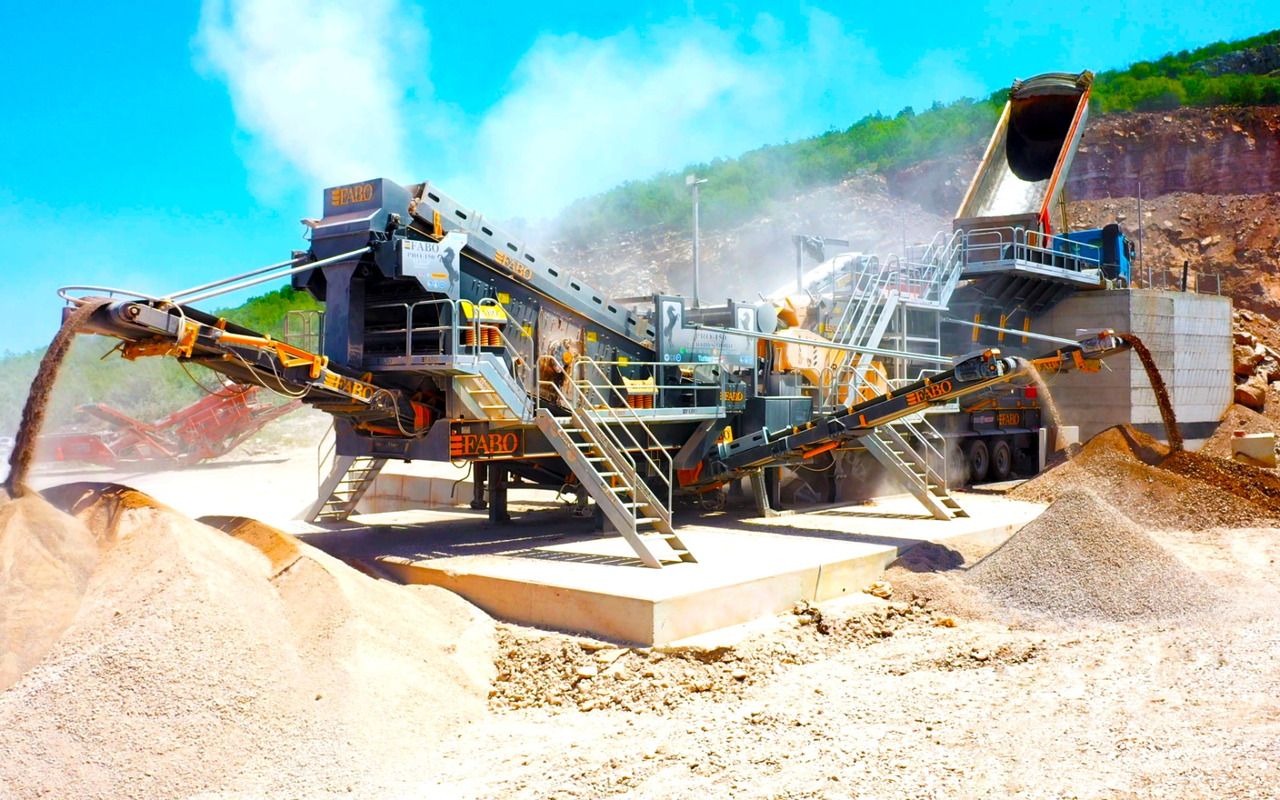

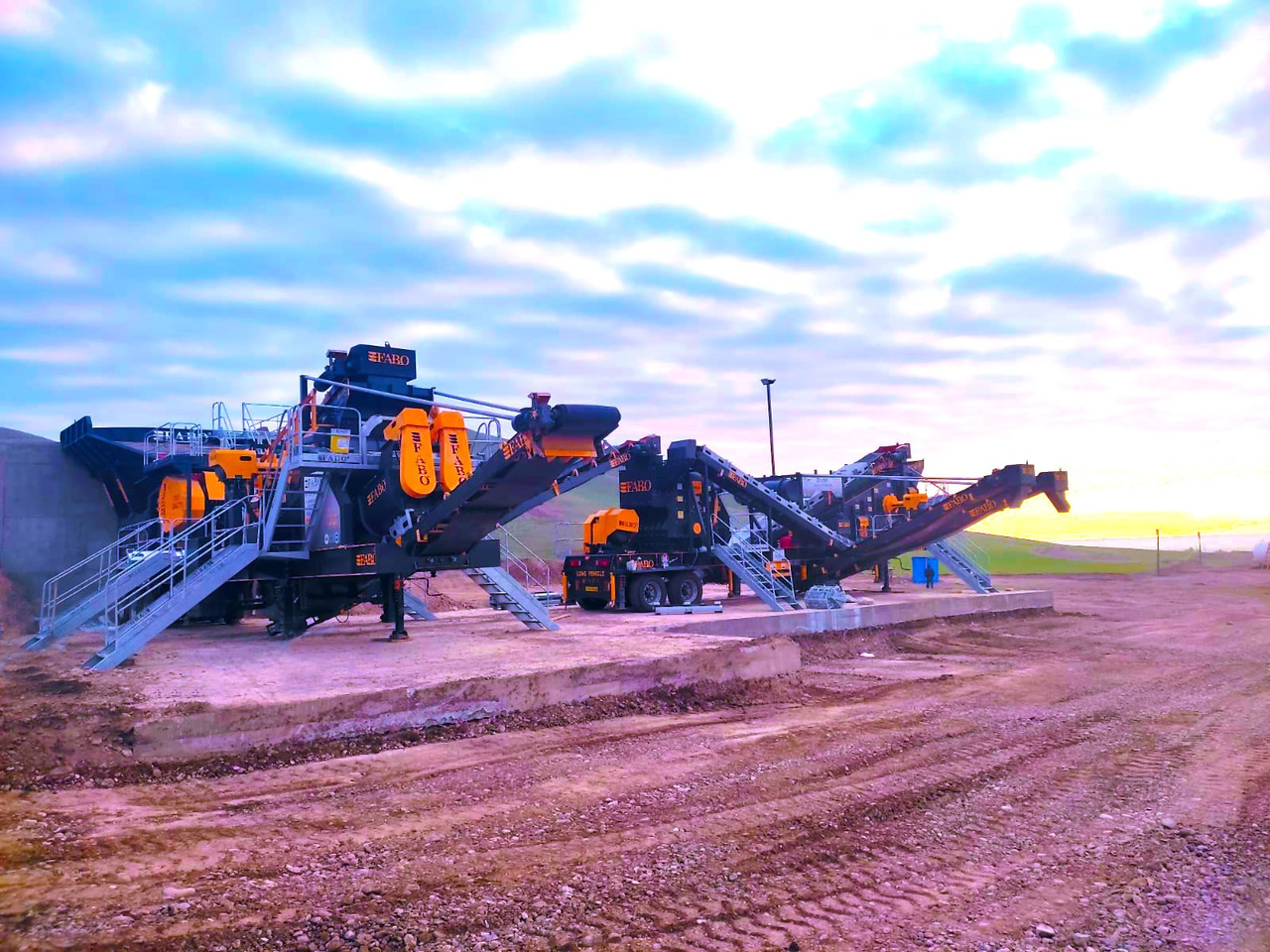

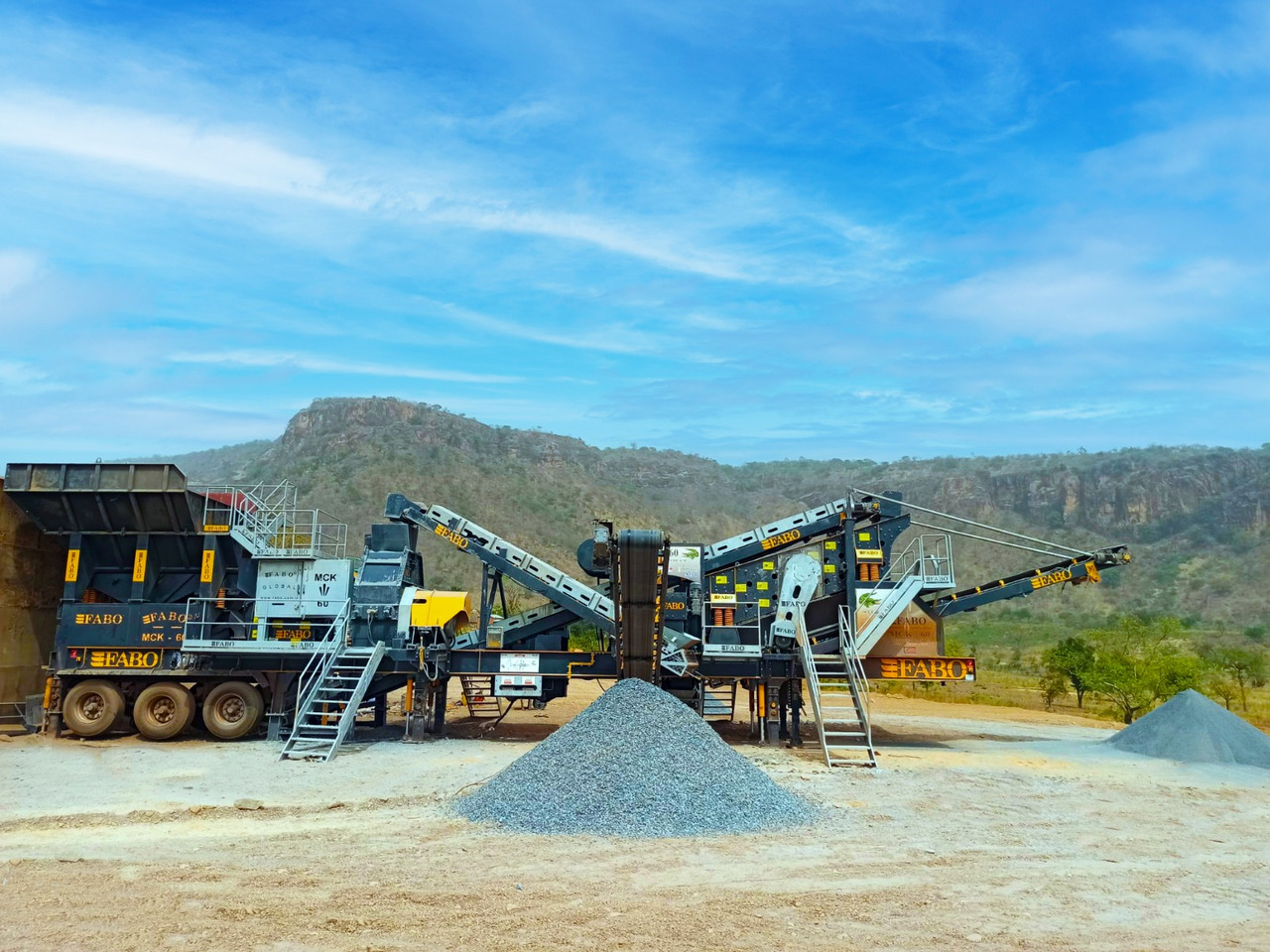

FABO MTK Series are mobile type & closed circuit crushing and screening plant known as also sand making machine that is used for high percentage of cubical shape sand production purpose by processing soft and medium hard materials such as limestone, gypsum etc.

MTK Series includes one stage of crushing process that is made by a tertiary impact crusher which is capable to produce high percentage of sand with good cubical shape.

TECHNICAL SPECIFICATIONS:

-Bunker: 10 m3

-Plant Dimensions: 17000x4500x3900 mm

-Production Capacity: 200-300 Tons Per Hour

-Crusher Type & Rotor Size: Tertiary Impact Crusher – 1200x1300 mm

-Maximum Feeding Size: 120 mm

-Vibrating Screen Size and Deck: 2000x5000 mm 3 decks

-Total Motor Power: 365 Kw

-Generator (optional): 500 kvA

MTK-130 IS A COMBINATION OF:

• Hopper

• Vibrating Feeder

• Tertiary Impact Crusher

• High Stroke Type Vibrating Screen

• Folding type feeding, feedback, bypass and stock conveyor belts

• Hydraulic feet

• Mobile Chassis with axles and tires

• Fully Automation System

• Dust Suppression System

• Easy walking platforms for maintenance

• Diesel Generator (Optional)

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
