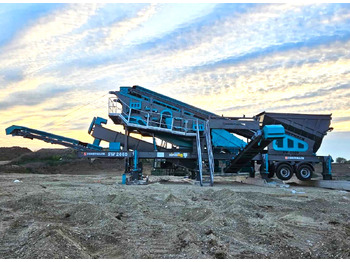

غربال جديد Constmach Mobile Sand And Gravel Washing And Screening Plant

You can call us 24/7 for a mobile screening washing plant for sale.

CONSTMACH SW Series Mobile Washing and Screening facilities are facilities equipped with modern technology that offer superior performance in sand screening washing and gravel, clay washing screening processes. Thanks to its mobile structures, it is easily portable and saves time and cost thanks to its fast installation. Offering high efficiency and durability, these facilities are perfectly suited for projects of various sizes.​

The SW Series, manufactured with the reliability of the CONSTMACH brand, offers the perfect combination of components such as a vibrating feed hopper, a vibrating sieve, a screw washer and a wheeled mobile chassis with hydraulic legs. These facilities, equipped with folding type stock tapes and remote controlled automation system, guarantee easy operation and high performance. Facilities supported by electronic components of world brands such as SIEMENS and SCHNEIDER can be managed with just one tablet thanks to the PLC automation system.

CONSTMACH Mobile Washing and Screening plants are offered in various models according to production capacity. For example, the SW-1240 model has a capacity of 60 tons/hour, while the SW-2060 model can reach a capacity of up to 200 tons/hour. Thanks to the flexible structure of the facilities, an electric generator can be added to the power plant chassis when needed, or the facility can be used only for screening purposes by removing the scrubber.

CONSTMACH SW Series is an ideal choice for those who are looking for a mobile sand sifting washing machine with its high performance and durability. With their easy portability, fast installation and superior technology features, these facilities provide the highest efficiency in all kinds of projects. Take your projects one step forward with CONSTMACH.

Technical Characteristics of SW-1240 Mobile Screening Washing Plant

Production Capacity: 60 tons/hour

Screen Dimensions: 1.2 x 4 meters

Screen Washer Dimensions: 400 x 4.000 mm

Feeding Height: 3.2 meters

Electricity Generator Requirement: 50 kVA

Weight: 14 tons

Technical Characteristics of SW-1640 Mobile Screening Washing Plant​​

Production Capacity: 80 tons/hour​

Screen Dimensions: 1.6 x 4 meters

Screen Washer Dimensions: 500 x 5.000 mm

Feeding Height: 3.2 meters

Electric Generator Requirement: 60 kVA

Weight: 17 tons

Technical Characteristics of SW-1850 Mobile Screening Washing Plant

Production Capacity: 150 tons/hour

Screen Dimensions: 1.8 x 5 meters

Screen Washer Dimensions: 600 x 6.000 mm

Feeding Height: 3.4 meters

Electric Generator Requirement: 80 kVA

Weight: 22 tons

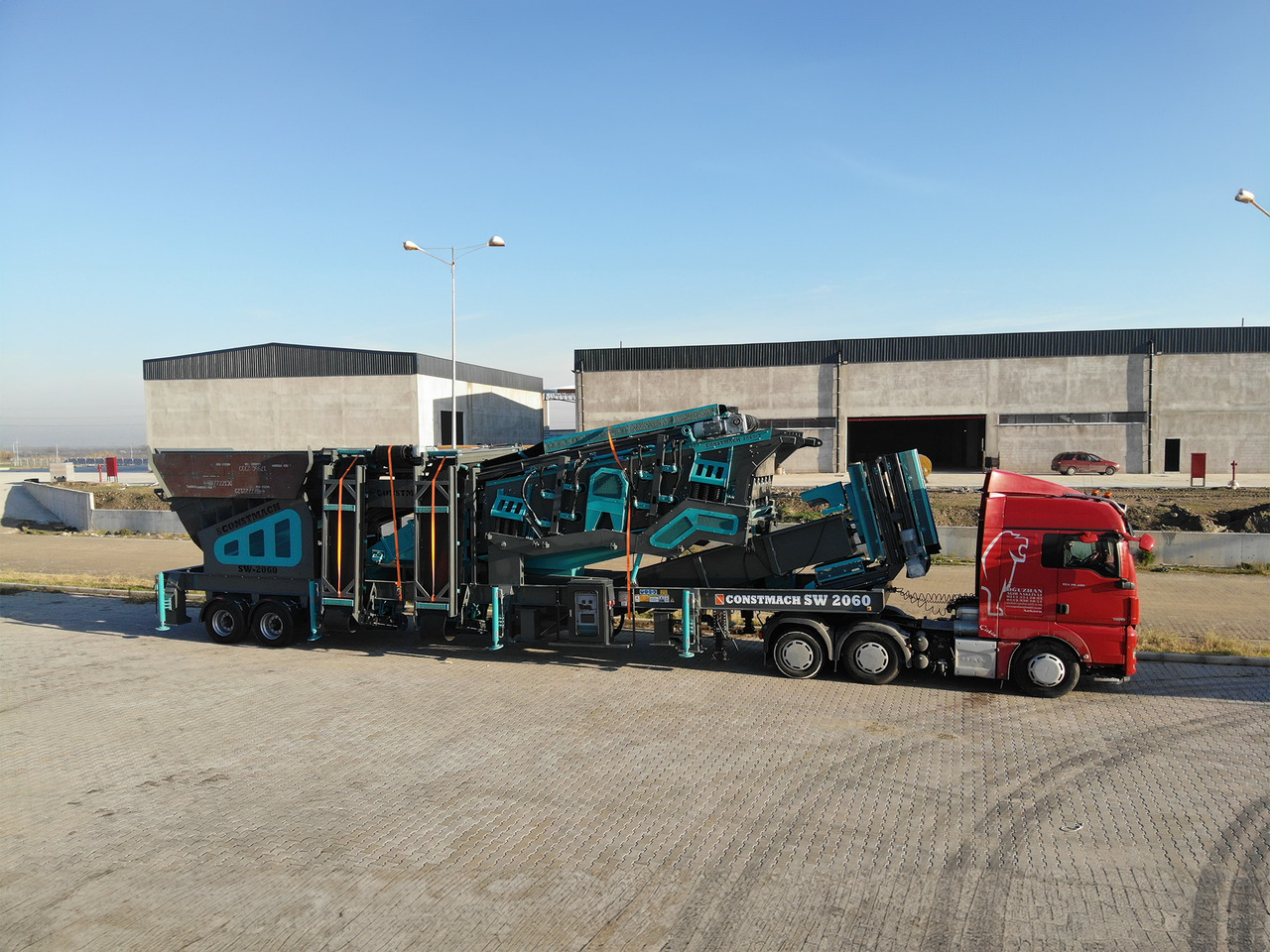

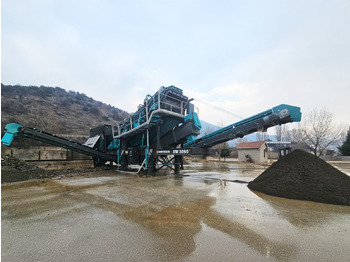

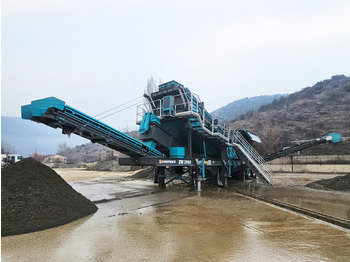

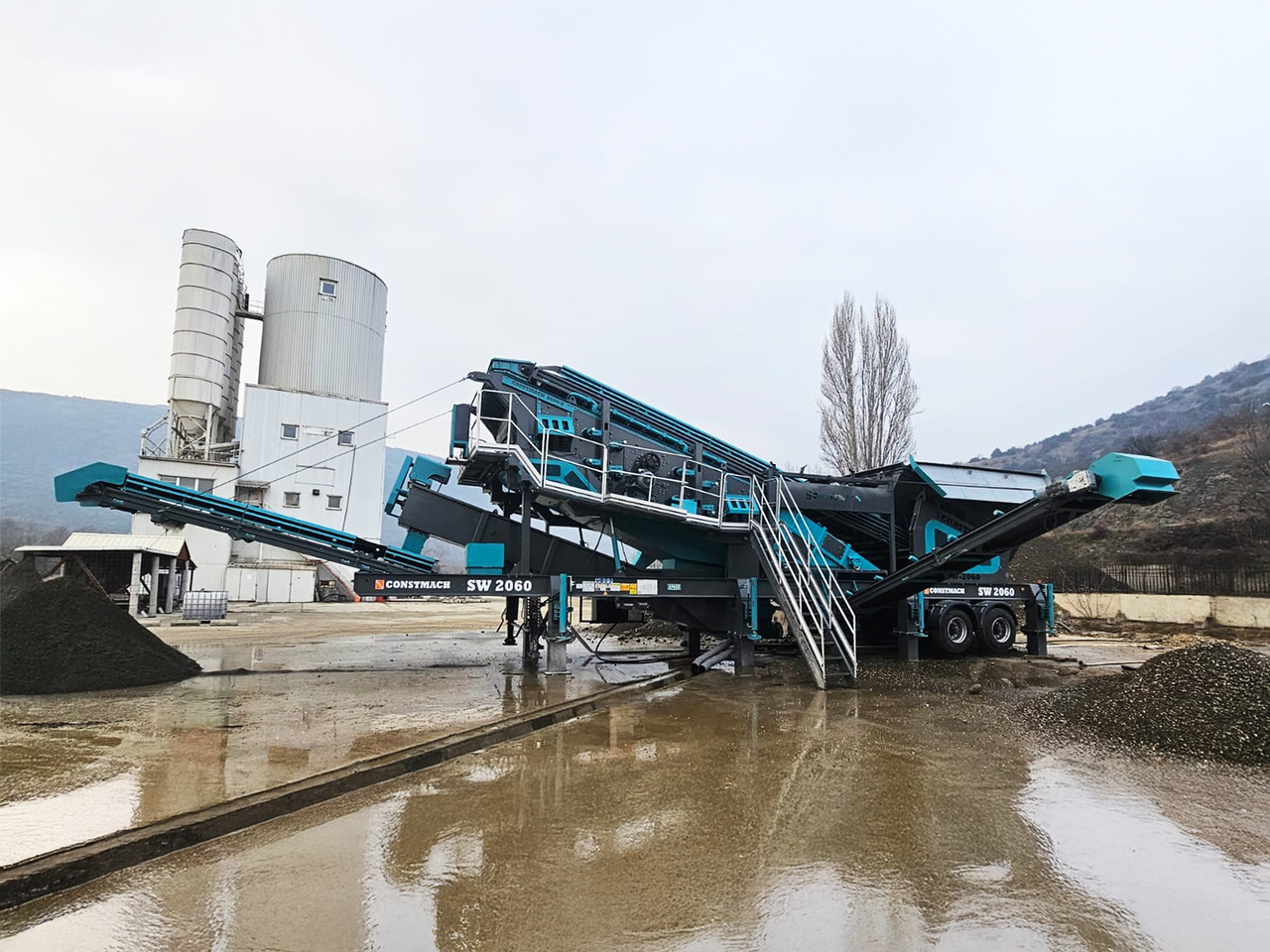

Technical Characteristics of SW-2060 Mobile Screening Washing Plant

Production Capacity: 200 tons/hour

Sieve Dimensions: 2 x 6 meters

Screen Washer Dimensions: 700 x 7.000 mm

Feeding Height: 3.6 meters

Electric Generator Requirement: 100 kVA

Weight: 32 tons
