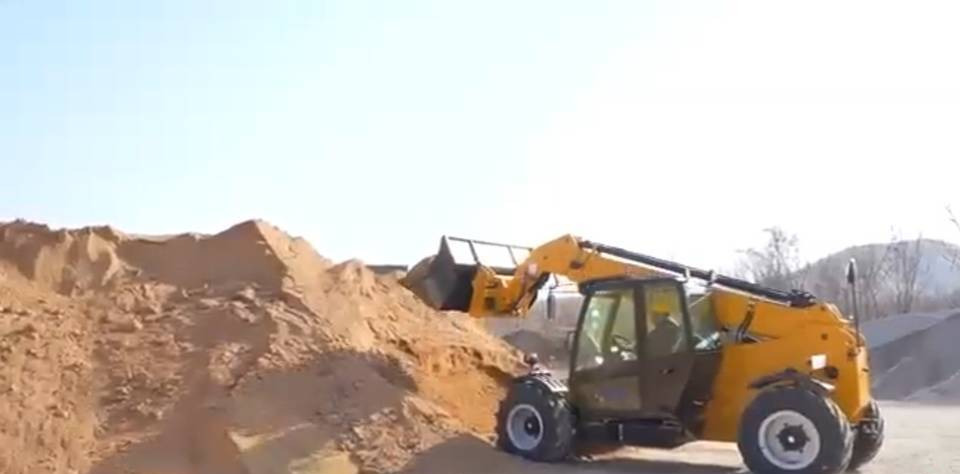

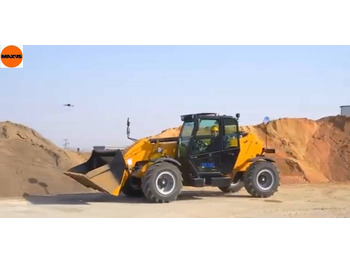

رافعة تلسكوبية جديد New Backhoe loader MAXUS Новий екскаватор-навантажувач MAXUS YC4A105Z-T20 YC4A105Z-T20

Machines, devices, and vehicles are eligible for all assistance programs.

TESTS for MAXUS

You will be able to test any of our tractors or machines within 14 days of delivery. This time will allow you to evaluate the equipment in your working conditions.

MAXUS SERVICES

100+ cooperating stationary service centers and workshops

100+ cooperating mobile service units

100+ cooperating tow trucks

Become our Client - MAXUS Brand Ambassador

You’re wondering how it works? Initially, you’ll receive a machine at half price—the rest you’ll pay by promoting the MAXUS brand.

Together, we can achieve more.

Join us today—we’re waiting for you!

Short on cash?

No problem.

We offer both bank and non-bank financing for the machines, devices, and vehicles we sell.

We can propose:

Operating lease (bank and non-bank)

Financial lease

Leasing loans

Investment or general-purpose loans, including EU-supported loans

Factoring loans

Non-bank loans

Leasing is available for companies and farmers from day one of their operations.

Additionally:

Declaration-based credit

No credit checks in BIK or KRD

Own contribution required

General Dimensions:

Length (bucket on the ground): 6490±50mm

Length (forks on the ground): 6415±50mm

Length (without forks and buckets): 5379±50mm

Total width (outer tire edge to outer hood edge): 2280±20mm

Loading bucket width: 2250±10mm

Height (to the top of the cabin): 2580±20mm

Wheelbase: 3450±10mm

7-inch wheel track width: 1855±10mm

Key Technical Parameters:

Rated load: 3000KG

Operating weight: 8580 KG

Bucket capacity: 1.6 m³

Maximum dump height (dump angle 41°): 5993 mm

Dump reach: 556.7 mm

Turning Radius:

Bucket outside rim / inside tire center: 6200±50/3600±50mm

Lifting time (empty/full load): Start 10.7/15.5 S

Lowering time: 7.7 S

Dumping time: 6.7 S

Engine:

Engine model: YC4A105Z-T20

Cooling type: Liquid cooling

Rated power: 75 kW (102 HP)

Engine capacity: 4.8 L

Rated speed: 2200 rpm

Max. Torque: 400 NM

Transmission System:

Torque Converter: Model 290

Cooling Type: Oil circulation under pressure

Transmission: Model 28, electrohydraulic synchronous shift

Axles: 3-axle system (front axle WL96Q2W, rear axle WL96Q2A)

Gear Positions: 4 Forward (F), 4 Reverse (R)

Speed (F/R): F1: 6 km/h, F2: 14 km/h, F3: 23 km/h, F4: 36 km/h, R1: 6 km/h, R2: 14 km/h, R3: 23 km/h, R4: 36 km/h

Tire size: 405/70-24

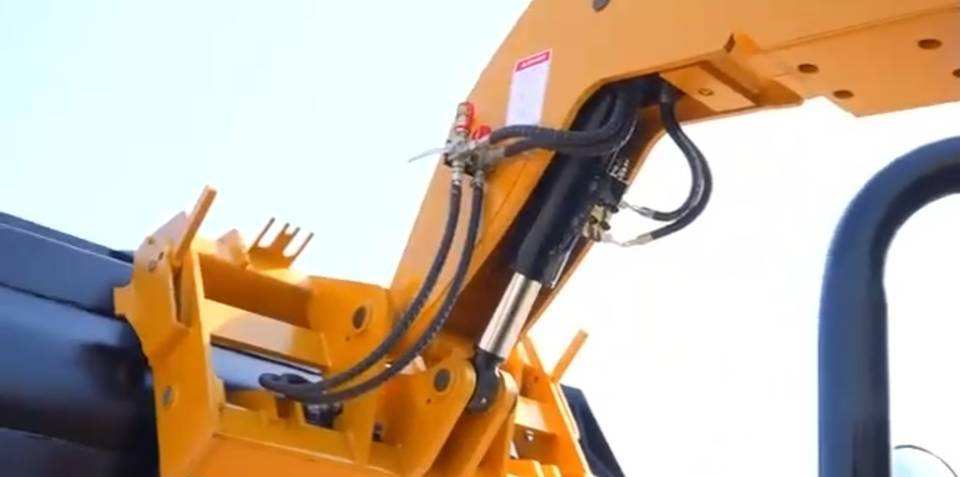

Hydraulic System:

Pump working efficiency: 63ml/rev

Pump working pressure: 20Mpa

Steering gear model: BZZ-500

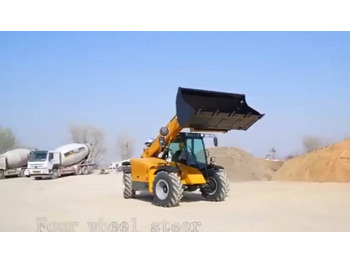

Steering mode: Front-wheel, four-wheel, crab type

If you need another tractor or machine of any power, it's no problem—just ask, and we will respond promptly.

Every purchase with us comes with a guarantee for the proper execution of the agreement amounting to:

2,000,000 PLN (two million) and an additional 1,000,000 PLN (one million), which secures every subcontractor in our supply chain.
