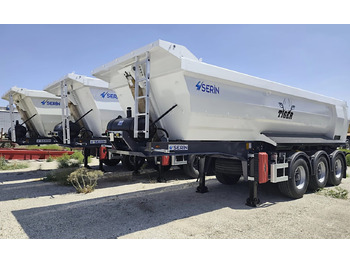

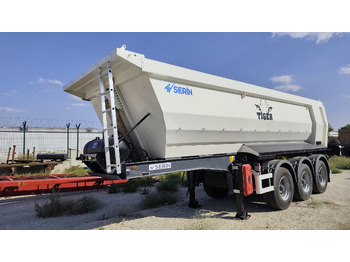

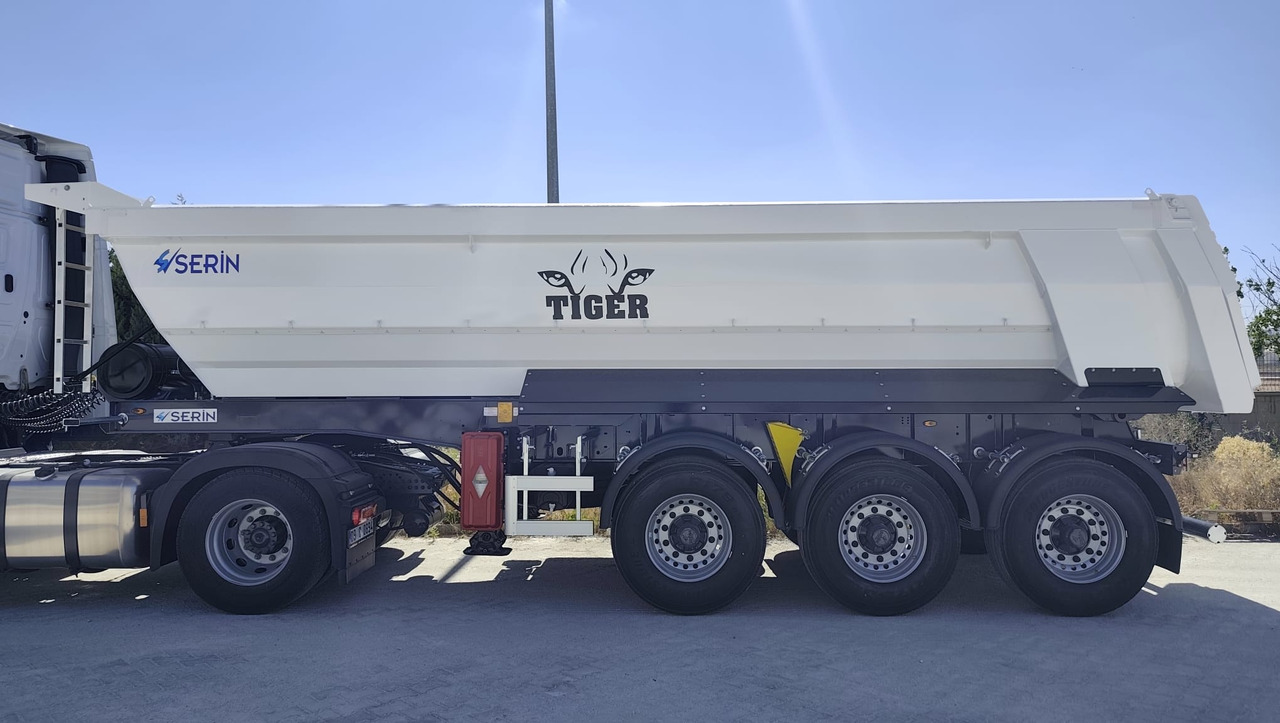

قلابة نصف مقطورة جديد لنقل البضائع الحرة SERIN Tiger HARDOX 28 m³ Tipper Semi-Trailer

Standard Features

LENGHT: 8700 mm

5TH WHEEL HEIGHT: 1.200-1.250 mm

EMPTY WEIGHT ( ±%3) 7650 kg

AXLES: 3x 9000 kg carrying capacity axle group, drum , SERİN or SAF brand

CHASSIS: SERİN Chassis in compliance with 98/91 EEC standards, formed by automatic submerged arc welding method as I-section made of high-strength steel material specially produced for SERİN

BRAKES: Automatic Load Adjustment Valve RSS (Corning Safety System) Braking System in accordance with 71/320 EEC and 2002/78 EC Standards

LIFTING AXLE: Front axle lifting system that prevents tire wear and provides convenience in turns

LANDING GEARS: 24000 kg carrying capacity,Double Speed, mechanical Landing Gears

KING PIN: 2” Flange type King Pin in 94/20 EEC norms

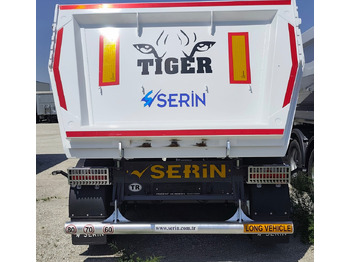

REAR BUMPER: Dipped galvanized (abrasion and corrosion resistant) movable rear bumper that complies with 70/221/ EC Standards and has been tested (compatible with Asphalt pouring machine Finisher)

SUSPENSION: Height adjusting system with Air Lowering and Lifting. Shock absorber elements that are compatible with the short scissor asphalt pouring machine finisher and limit excessive axle movement. System that automatically lowers the suspension when the tipper is lifted.

ELECTRICAL SYSTEM AND LIGHTENING SYSTEM: 3 Amber colored lights on the sides, Tail lights, license plate light, triangle reflector. (Electrical system, complete E approved) 2 X 7 pin electrical socket *If the tipper is open or opened while the vehicle is running, it will be compatible with the visual warning system in the direct field of view of the driver, which gives an audible warning to warn the driver.

TOOL BOX: 60x50x50 cm plastic tool box

WATER TANK 30 Lt Plastic water tank

TIRES AND RIMES : 6+1 pcs 385/65/22,5 Tubeless tires, Steel Rims

SPEAR WHEEL CARRIER: 1 unit x Reductor type

UPPER STRUCTURE: Hardox 450 high strength steel

HYDRAULIC SYSTEM: 5-stage telescopic cylinder made of cold-drawn steel, limit control valve, diverter valve, 150 lt oil tank and high pressure resistant hydraulic hose

MUD COVER: Integrated with regulation-compliant 3 pcs plastic full mud covers on each side

MANOMETER: Manometer showing the axle group load according to the pressure in the airbag

Prices are representative of EXW Konya. Please contact us for more details information.
